Project Portfolio
At Winjoy Innovatives, we don’t just build machines — we engineer solutions.
Our portfolio reflects our commitment to solving complex industrial challenges through innovation, precision, and custom-built machinery. From concept to commissioning, every project we undertake is designed to improve efficiency, enhance productivity, and meet the unique requirements of our clients.
Each project showcases our ability to translate real-world problems into smart, efficient, and scalable mechanical solutions.
Let our work speak for itself.
Pedestals can withstand loads above 36 tons.
Pedestals can withstand loads above 36 tons.
Pedestals can withstand loads above 36 tons.
Pedestals can withstand loads above 36 tons.
Pedestals for dry drum foundation
Custom Product | Food Manufacturing Industry
A sizeable pedestal unit made for withstanding load capacity upto 36 tons. The Drum dryer is a large food processing system. The pedestals are 1 meter high made with 20mm MS Thick Plates coated with red oxide making it resistant to corrosive damage.
Bearing Test Rig for Endurance Testing
Special Purpose Machine | Automotive Industry
Concentric Slave Cylinder Test Rig for CSC Bearing capable of operating at 7200 rpm while enduring a 7000 N load. Design incorporates a heat chamber that can withstand a wide temperature range (-40°C to 180°C) and simulate diverse operating scenarios. Compatible for integration of diverse sensors and data acquisition systems through clients human-machine interface
Concentric Slave Cylinder Test Rig for CSC Bearing capable of operating at 7200 rpm while enduring a 7000 N load.
Concentric Slave Cylinder Test Rig for CSC Bearing capable of operating at 7200 rpm while enduring a 7000 N load.
Concentric Slave Cylinder Test Rig for CSC Bearing capable of operating at 7200 rpm while enduring a 7000 N load.
Concentric Slave Cylinder Test Rig for CSC Bearing capable of operating at 7200 rpm while enduring a 7000 N load.
Essential for maintaining a continuous and controlled supply of fuel to boilers or furnaces.
Essential for maintaining a continuous and controlled supply of fuel to boilers or furnaces.
Essential for maintaining a continuous and controlled supply of fuel to boilers or furnaces.
Essential for maintaining a continuous and controlled supply of fuel to boilers or furnaces.
Boiler Fuel Feeding System
Material Handling System | Food Manufacturing Industry
Winjoy Heavy-Duty Screw Conveyors specifically designed for boiler systems in the food processing industry.
Reverse Engineered and Modified for faster and easier installation, longer operational life and safer and more efficient maintenance.
Specifications:
Length: 5 to 10 meters
Thickness: 8 mm to prevent erosion and ensure durability during long-term fuel conveyance

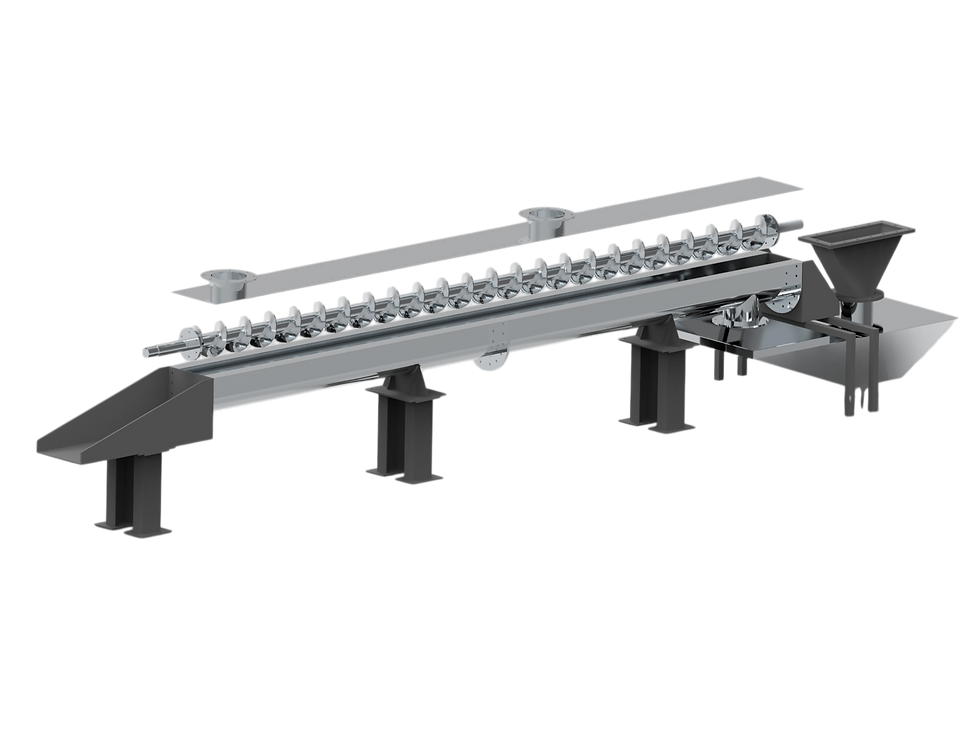

WRS-Sludge Screw Conveyor
Material Handling System | Food Manufacturing Industry
Sludge screw conveyors are specialized types of screw conveyors designed for transporting sludge or any other viscous, sticky, and abrasive materials.
Designed to handle viscous, sticky, and abrasive materials.
Designed to handle viscous, sticky, and abrasive materials.
Designed to handle viscous, sticky, and abrasive materials.
Designed to handle viscous, sticky, and abrasive materials.
Seasoning Feeder with Motor gearbox drive and Bulk storage capacity
Seasoning Feeder with Motor gearbox drive and Bulk storage capacity
Seasoning Feeder with Motor gearbox drive and Bulk storage capacity
Seasoning Feeder with Motor gearbox drive and Bulk storage capacity

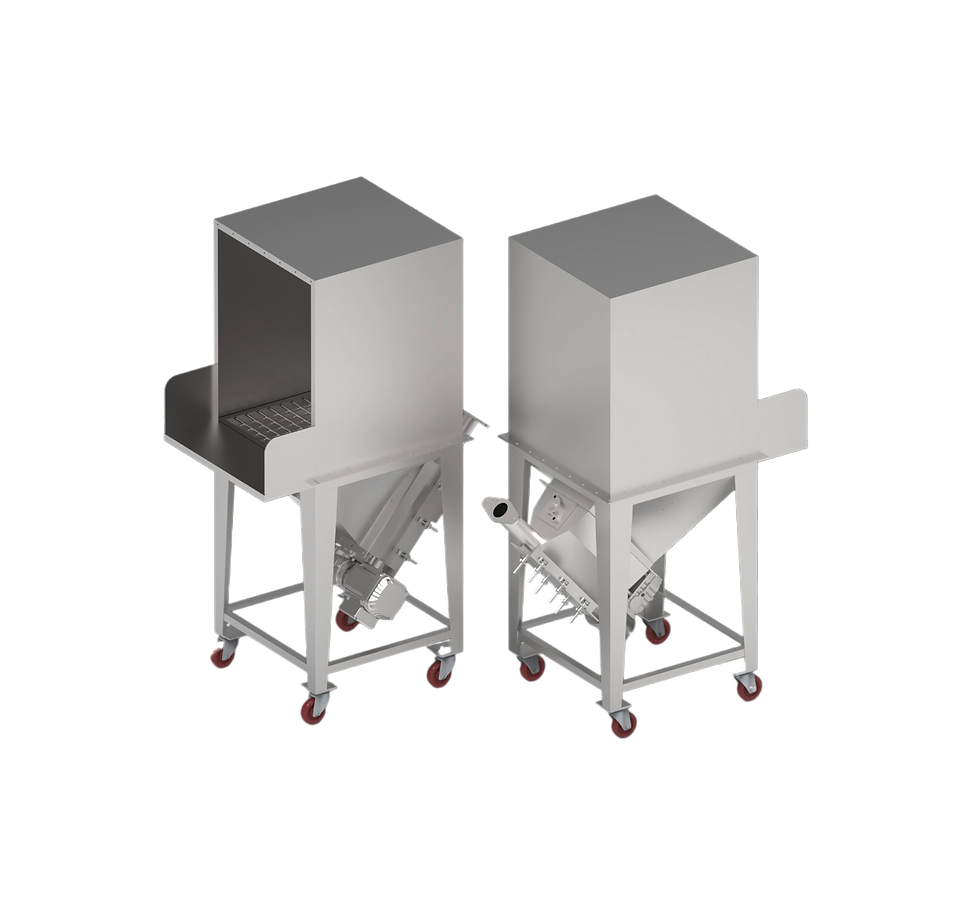

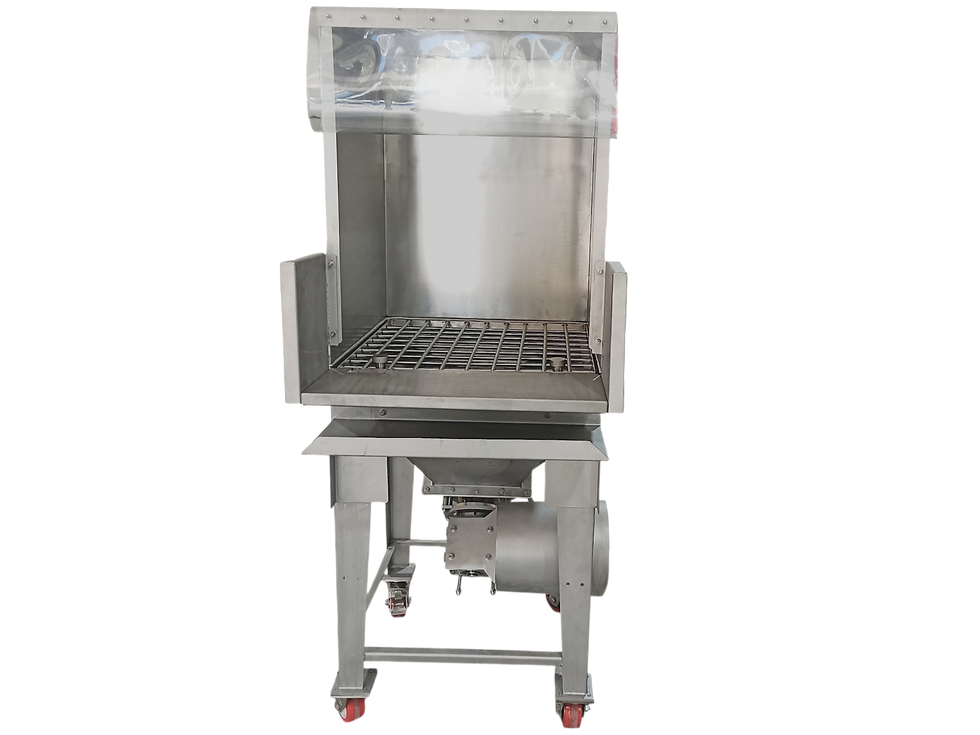

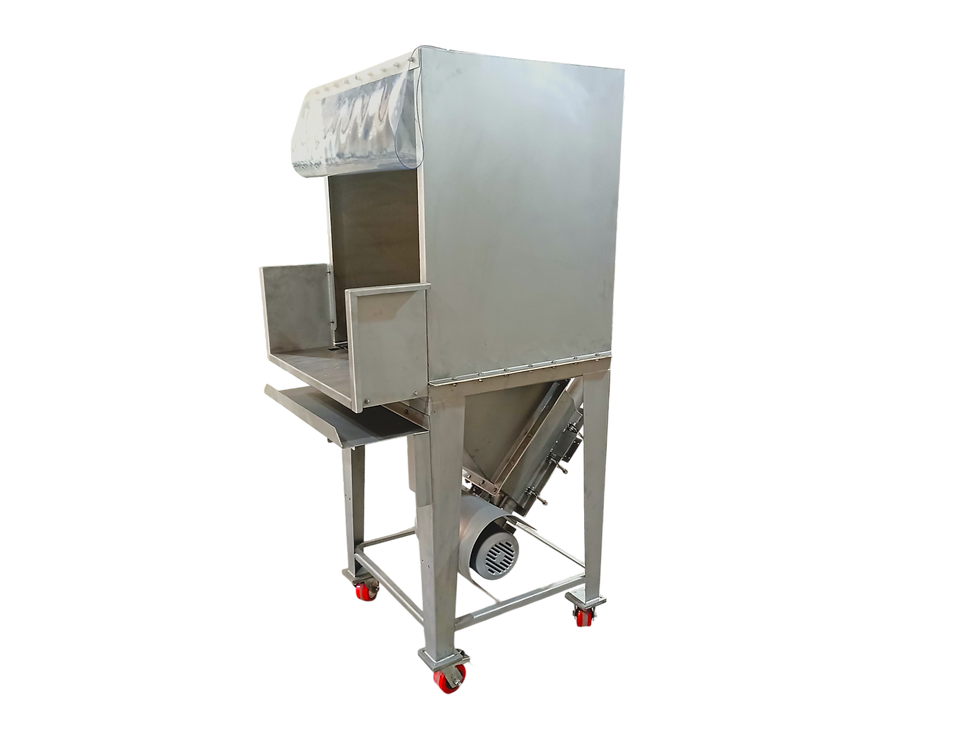

Food Seasoning Feeder
Custom Product | Food Manufacturing Industry
Stainless-Steel Sheet metal fabricated Seasoning Feeder with Motor gearbox drive and Bulk storage capacity with attached agitator and augar to convey the seasoning further to next food processing units.
Specs:
Height - 1.5 meter
Width - 1 meter X 0.650 meter
Bulk feeder - used to mix and convey flavour seasoning to an elevated tank of sprinkle system in a food processing line.
Made of stainless steel to avoid corrosion over long time periods being exposed to oil and food contents ensuring safety and hygiene.
